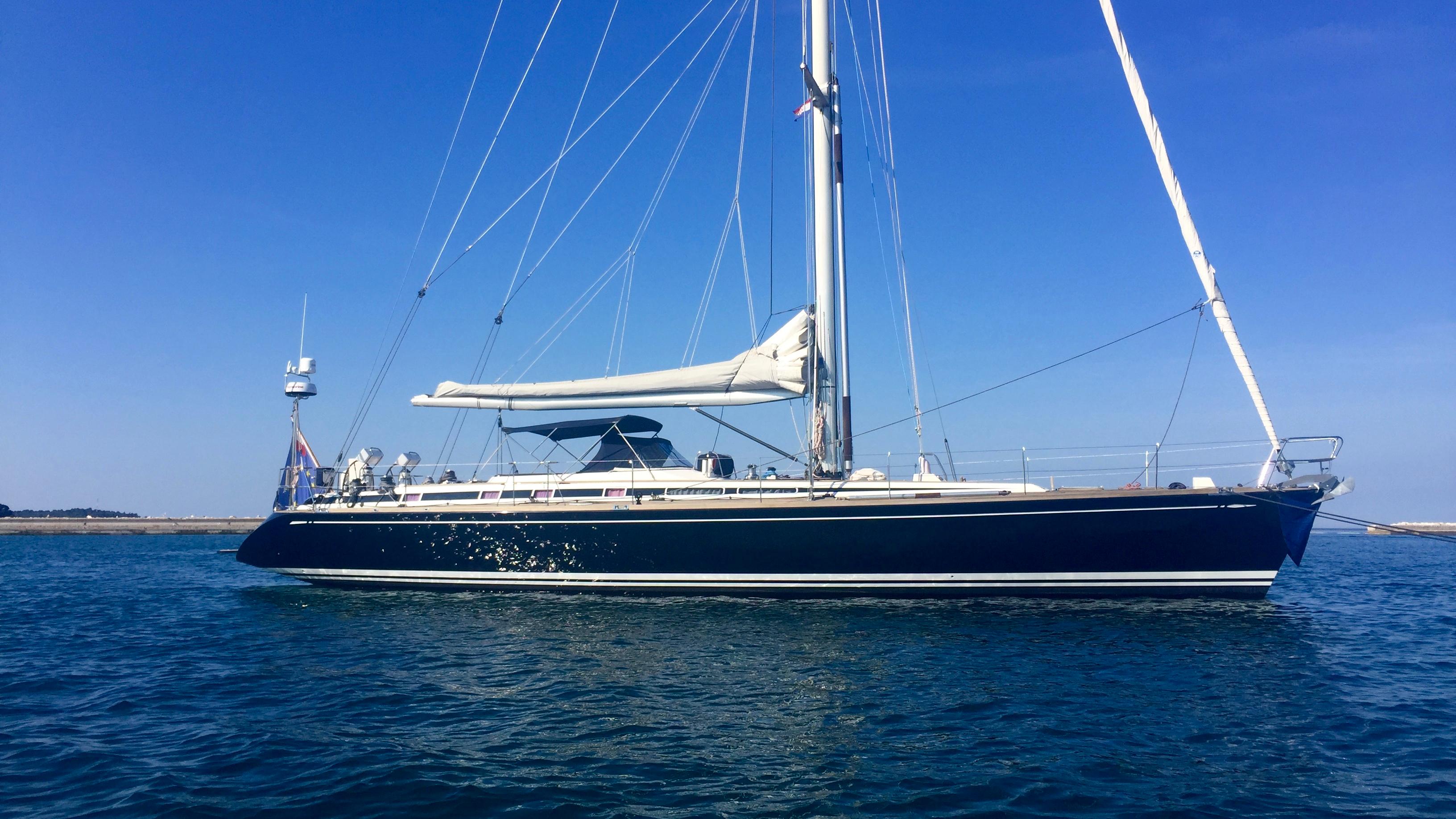

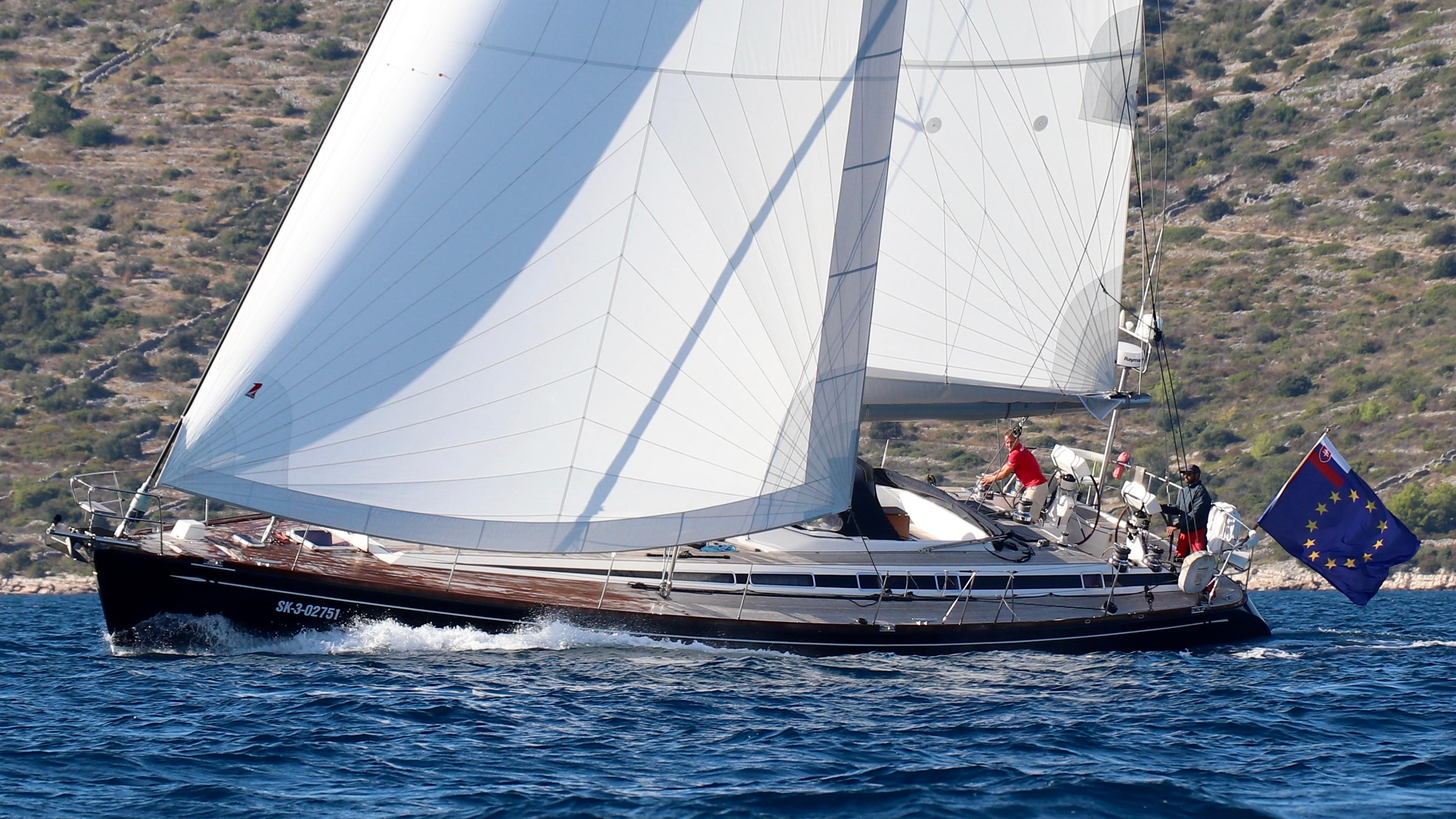

Hull number 17 of the world famous Swan 60 model range, Betsy has recently returned to the brokerage market. Featuring a hydraulic swim platform, Hall Spars carbon mast, park-avenue boom and a comfortable two-cabin interior, Betsy is ready for her new owner to step aboard and go sailing.
Nautor's Swan 60-017 'Betsy'HULL & APPENDAGES
The hull is of single skin construction using glass/aramid hybrid fibre reinforced polyester laminate.
Hull windows one each side of the saloon
Gelcoats are of weather-resistant NGA type.
Bottom treated with epoxy primer for improved blistering resistance
Hull is of single skin construction using glass/aramid hybrid fibre reinforced polyester laminate
Engine beds of GRP
Hull colour: Blue Awlgrip,
Double Coaming stripes Awlgrip G5002 Flag Blue
Mast stepped through deck onto composite mast step
The keel is a lead casting with antimony
Cast-in keel bolts are of high-tensile stainless steel
Retractable bow thruster Max Power 2012

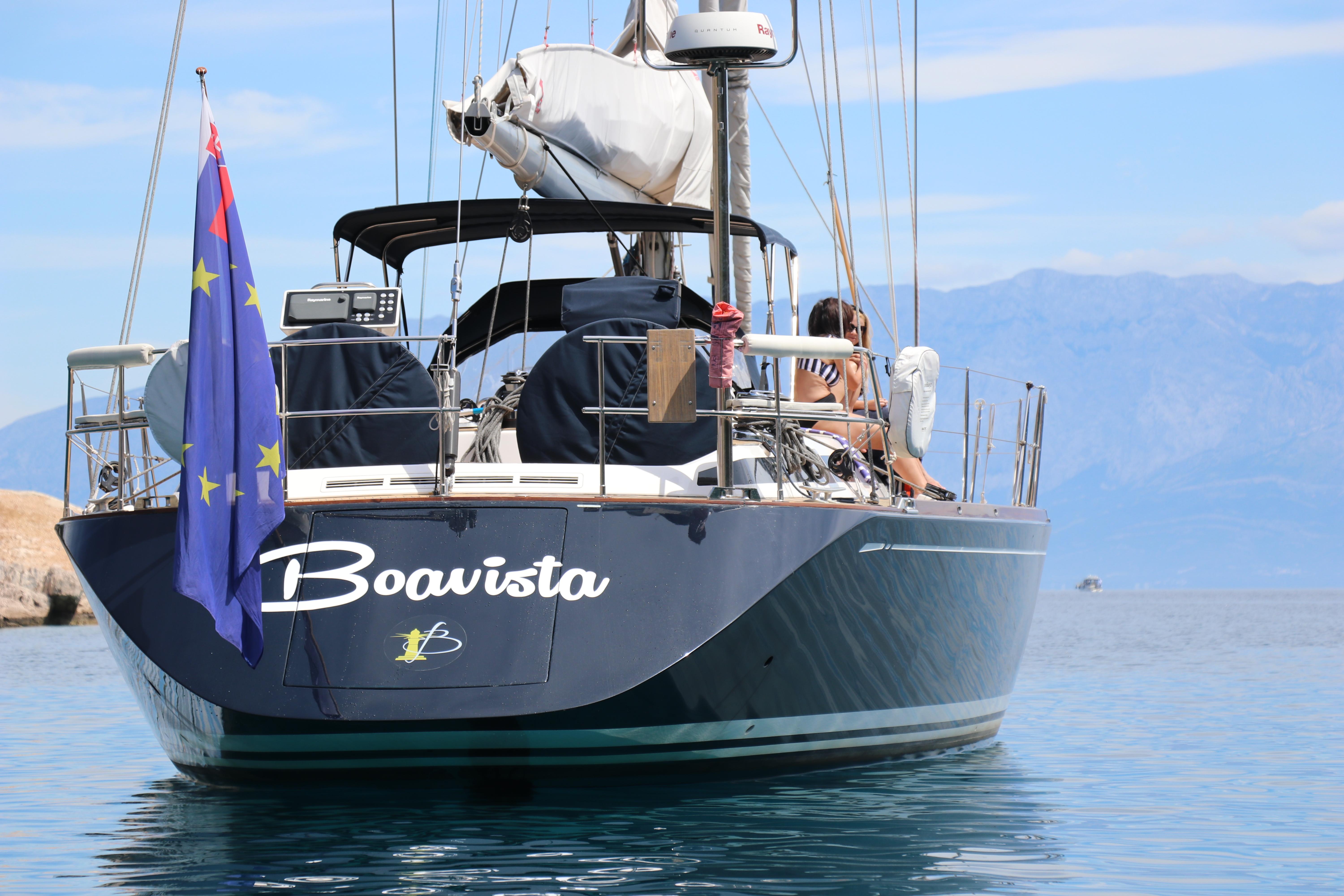

Transom
Bathing platform hydraulically operated
Steering System
Rudder is of foam filled GRP with tubular tapered stock of E-glass composite
Supported by two self-aligning roller bearings rudder bearings changed on 2016

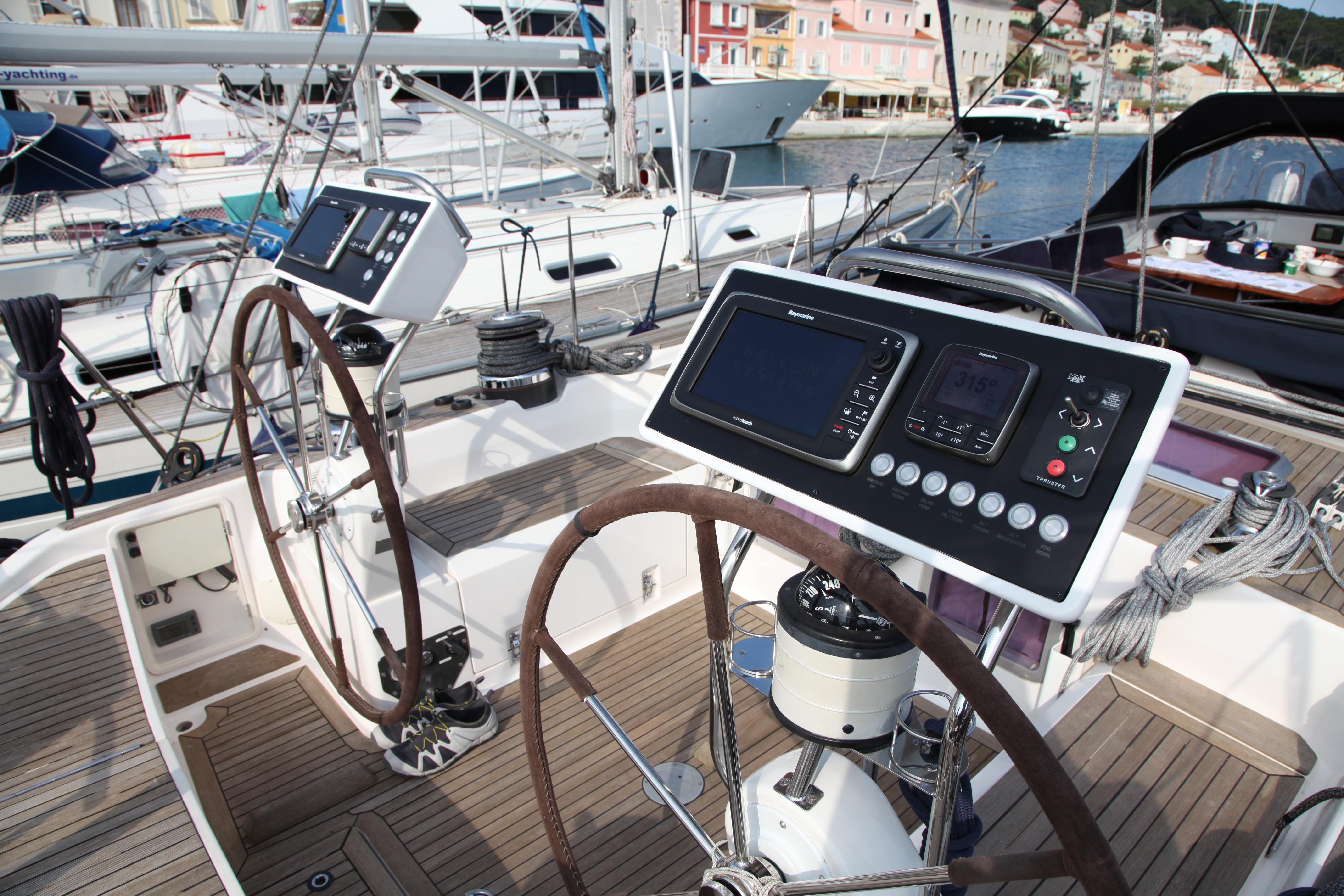

Dual steering gear with two 41’ Wheels
Steering quadrant bolted to rudder stock.
Emergency tiller stowed in lazarette.

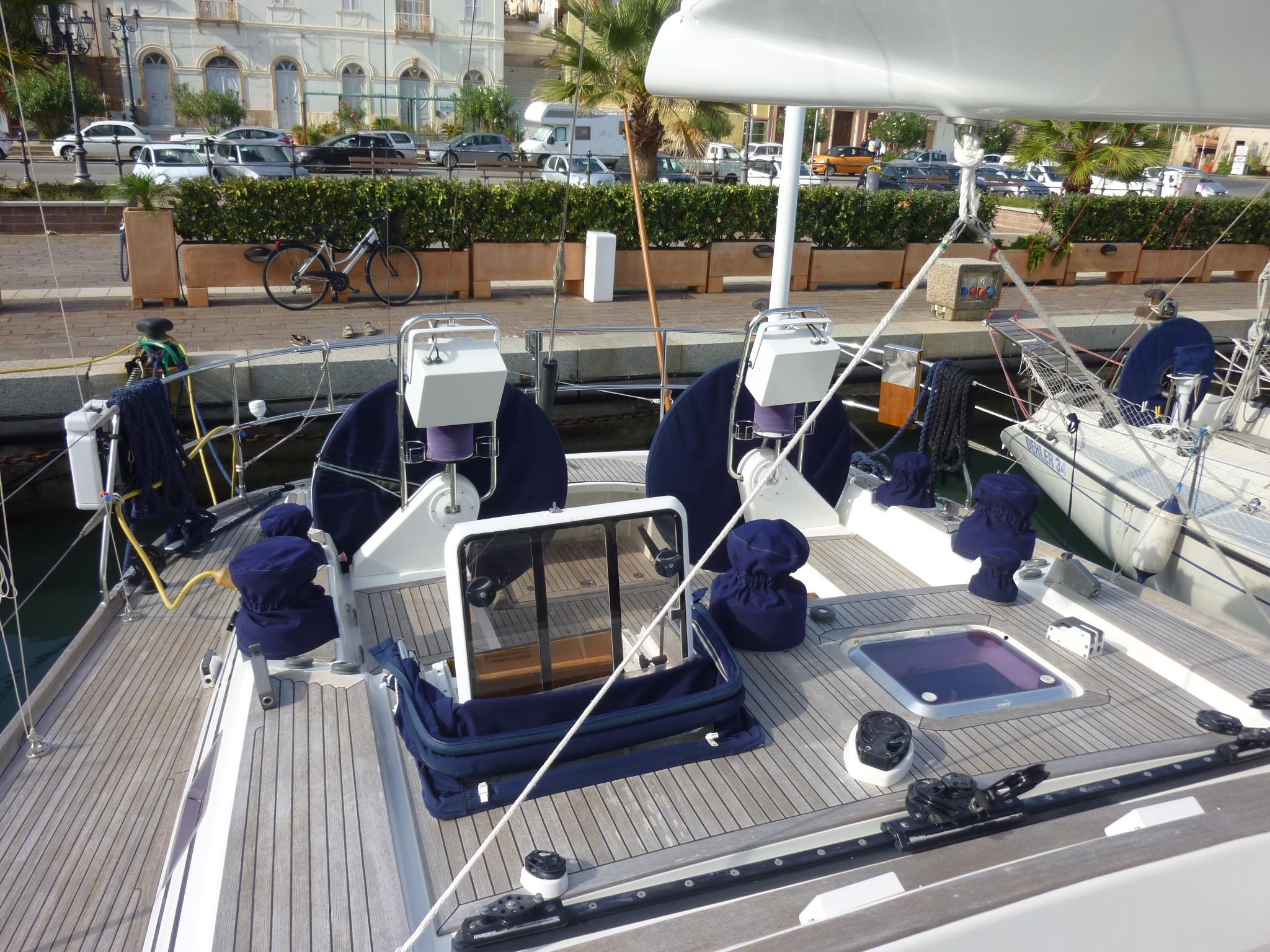

DECK
Cockpit cushions

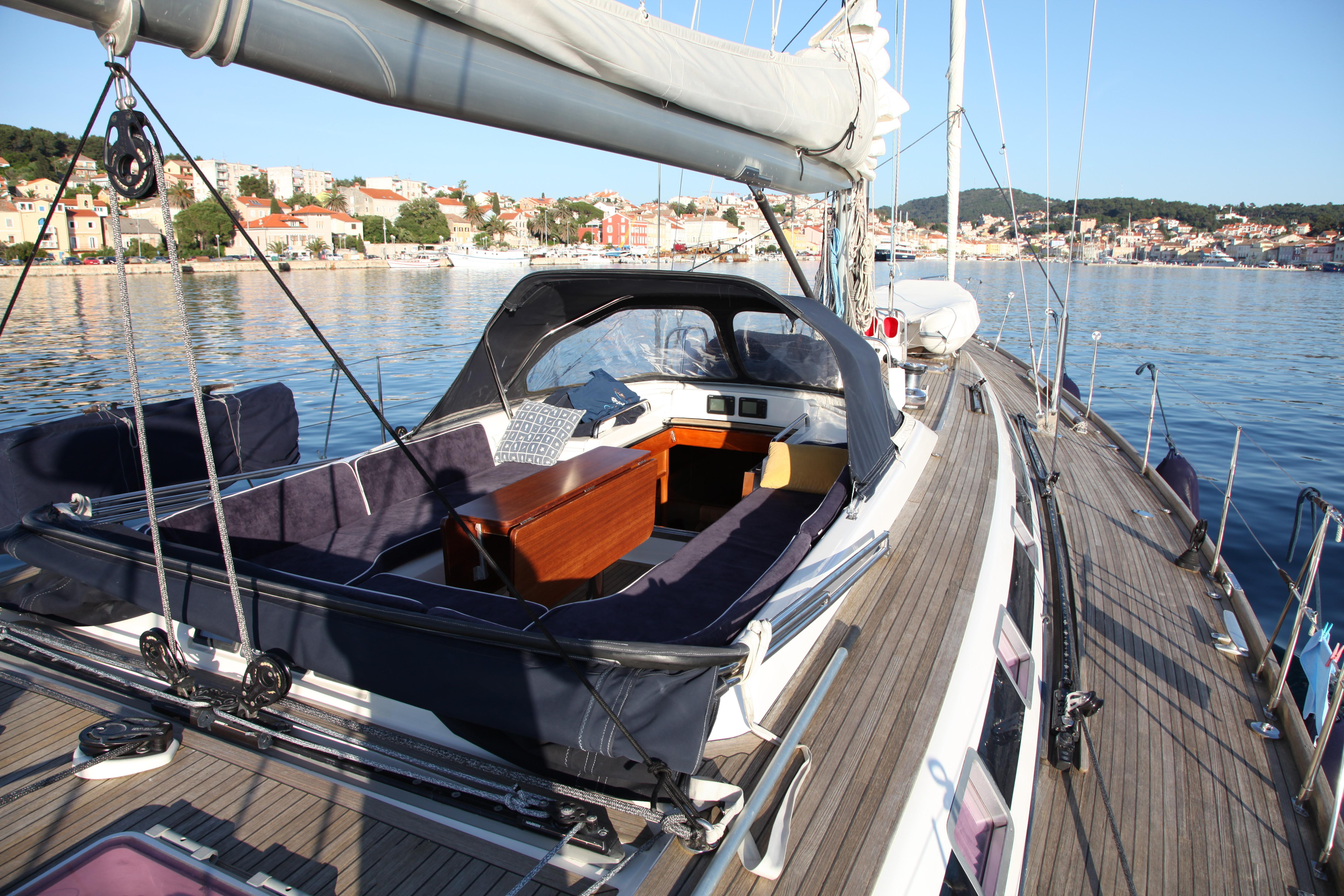

Spray hood for forward cockpit

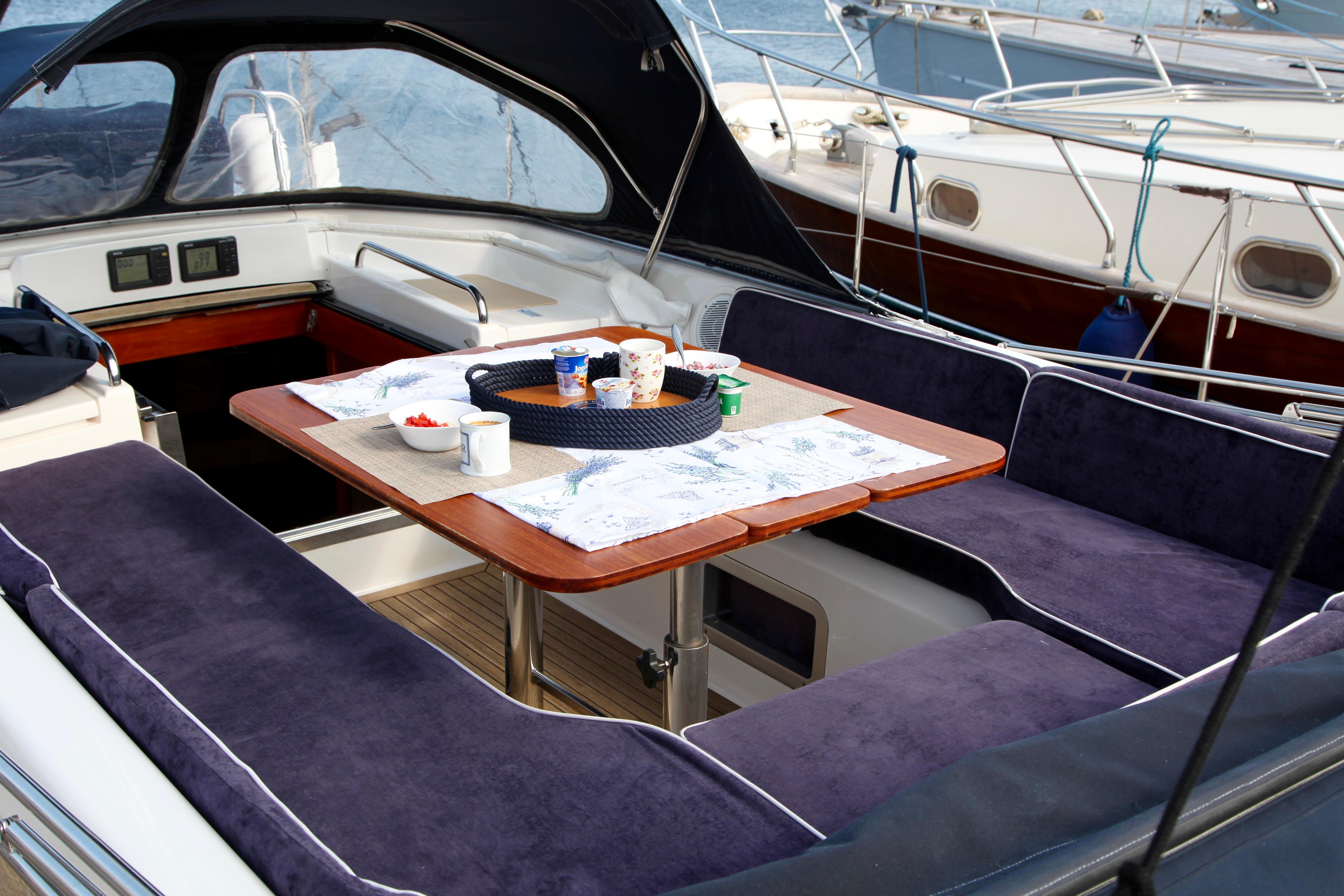

Cockpit table for forward cockpit with cover
Teak on side decks, bridge deck and in cockpits, coamings and on coach roof 13 mm thick
Colour of deck where not teak, white gelcoat, NGA 8533
Removable footrest, four pcs,
Deck Equipment
Anchor windlass, electric Lewmar Concept 3
Gypsy/capstan recessed in deck in port side of forepeak hatch.
Gate on pushpit
Gangway fitting on the stern and on platform
Outboard bracket on pushpit
Batting Ladder on platform stored behind the platform
Folding cleats amidships one each side
Roller fairleads with open top, one pair forward, two pair aft
Mug holder on pedestal, 2 pcs each pedestal
Stainless steal chafe plate for anchor chain
Navtec function hydraulic system
New rudder bushing 2016
Winches Lewmar
Two primary sheet winches Lewmar 77/3 AEST – electric
Two secondary sheet winches Lewmar 64 AEST – manual for the runners
One main sheet winch Lewmar 66/3 AEST – electric
One main halyard winch Lewmar 66/2 AEST_ Electric - on port side
One main sheet traveller control winches Lewmar 40 AST manual
Three winches at the mast Lewmar 50 AST manual
One manual halyard winches Lewmar 64 AST manual
Sailing Hardware
Carbon Bowsprit
Staysails sheeting tracks on coamings
Spinlock jammers to be used all over
Lines for adjusting genoa cars to run on deck to the secondary winches including harken block and spinlocks
Block for gennaker / spinnaker sheeting and runners
First reef as a conventional system
Second reef operate as a single system
INTERIOR
General
The interior is finished in hand-rubbed satin varnished teak
Removable floorboards are finished in teak
Any exposed hull areas are covered with teak battens
Overhead panels re finished in vinyl and easily removable
Mosquito screens and blinds for hatches
All joinery work in the living area is done in accordance with the best yacht practice, using first-grade materials. Teak with hand rubbed satin finish is used for the visible woodwork
Lockable floorboards with laid teak veneer, providing access to the bilge
Overhead lined with removable white ceiling panelling
Cabinets, tables, bureaus, seats, dressers etc. have rounded corners
Doors, partitions and panelling are teak-faced plywood or foam
Self-engaging latches with bumpers to hold doors in open position. Hanging lockers are equipped with rods and hooks, and their doors are provided with louvres
Drawers are secured with latches
Companionway ladder with non-slip steps
Roller blinds/mosquito screens recessed into large deck hatch frames
Teak floorboards
Interior Layout

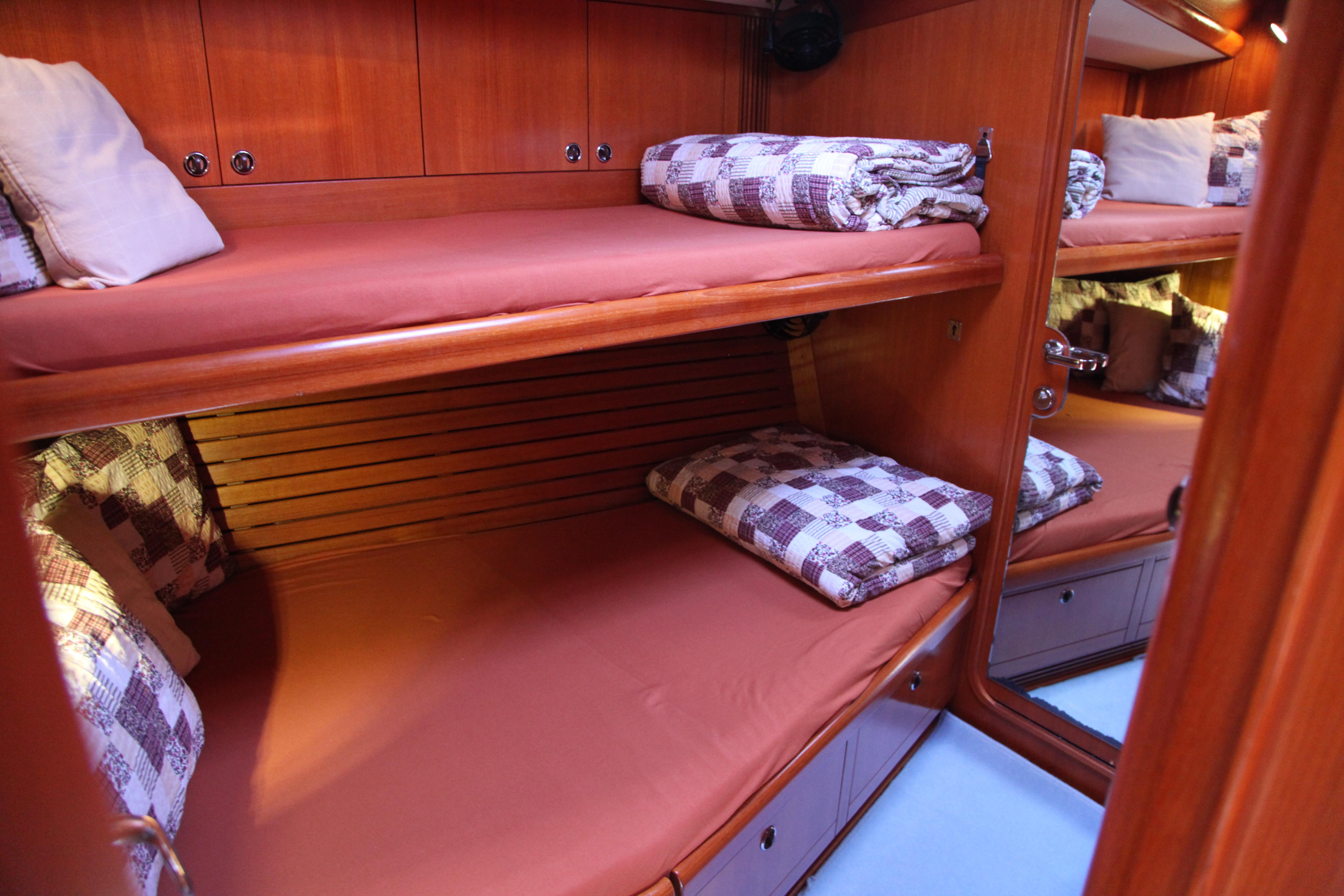

Crew Cabin
2 berths
Side lockers above berths
Toilet crew cabin 2007
Install washer-dryer 2007

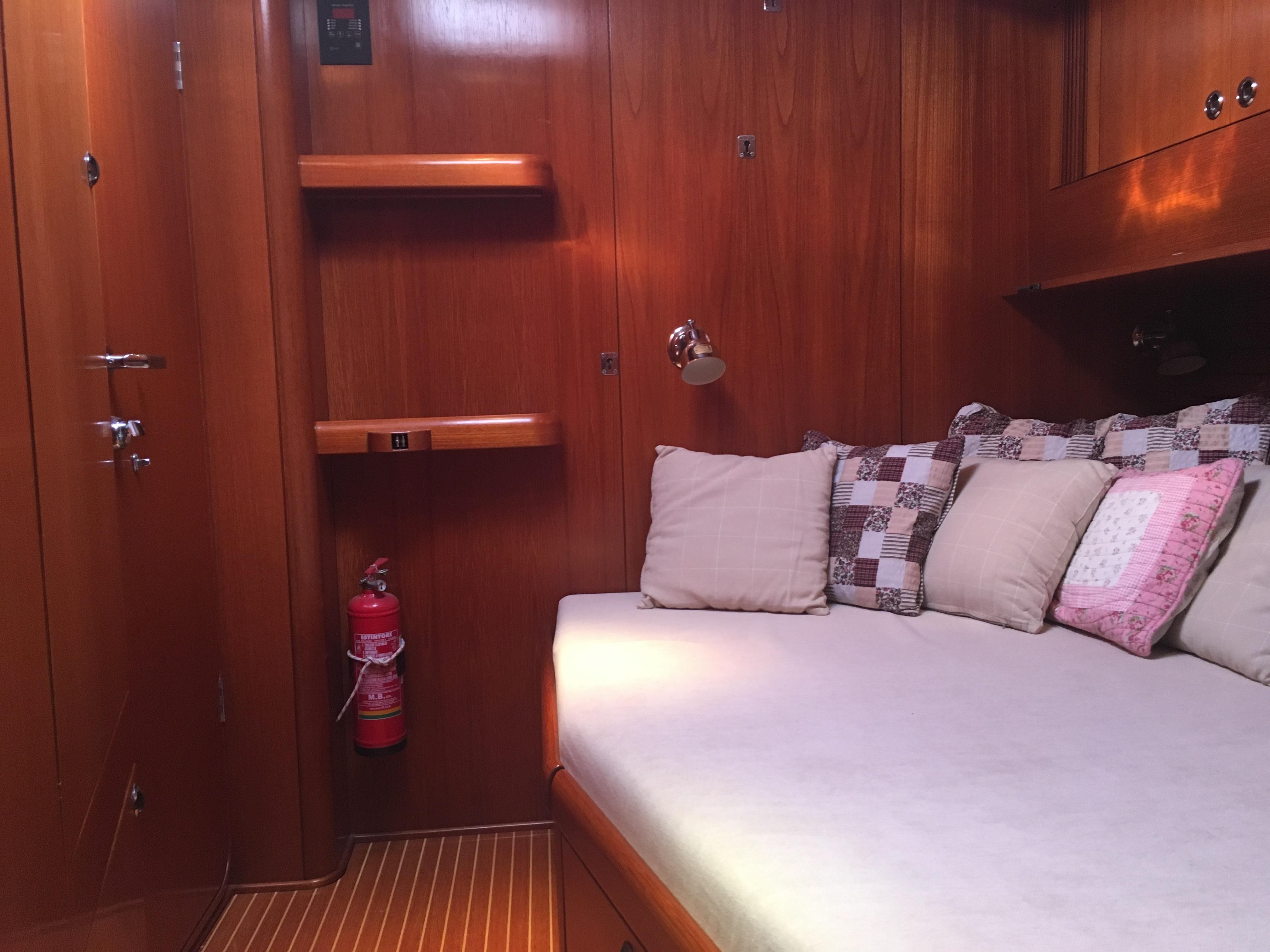

Forward Guest Cabin
Big stowage under double berth in guest cabin forward of the mast

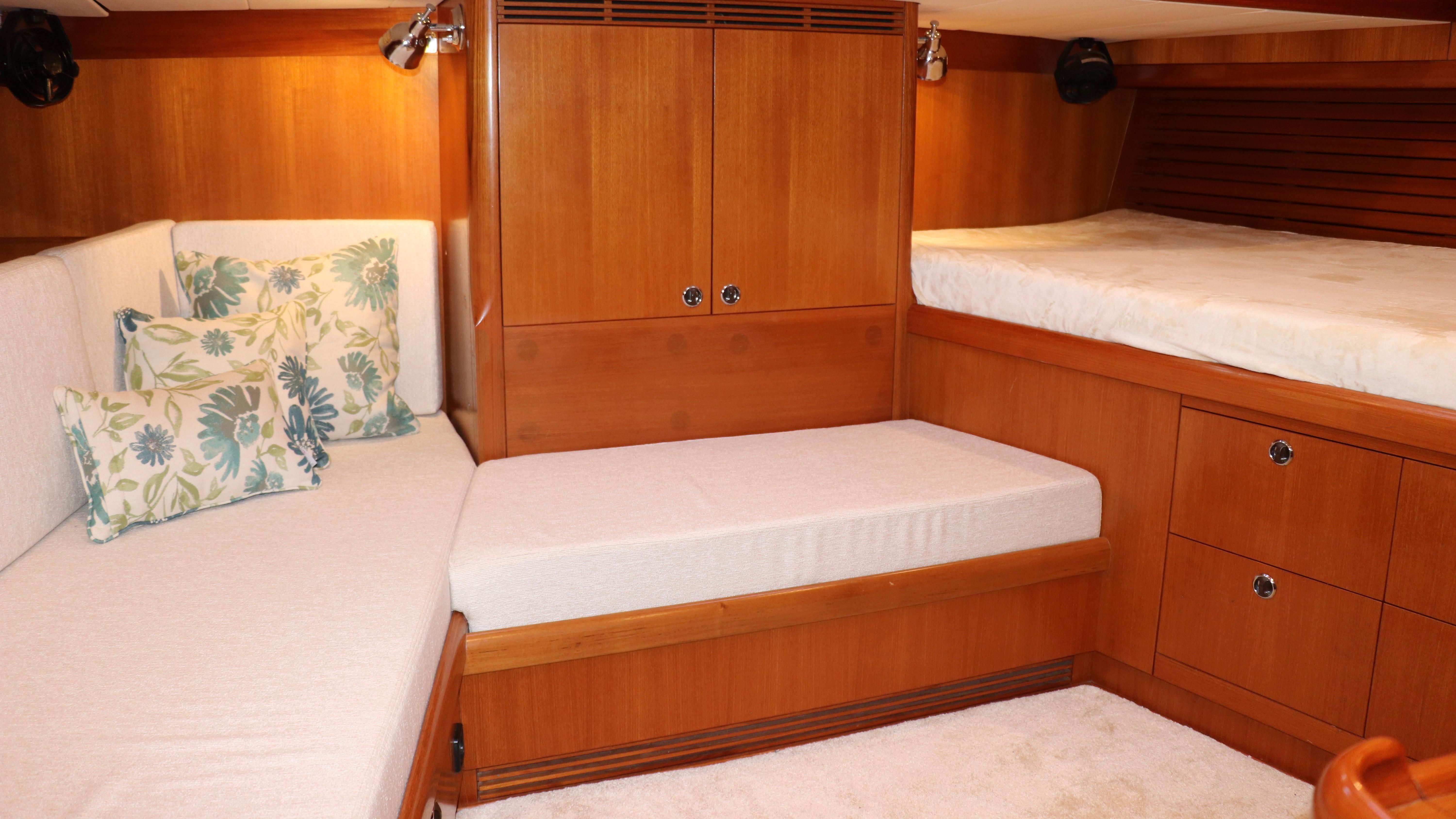

Owners Cabin
Double central berth, sofa on starboard side. Writing desk with chair forward. Hanging locker port side

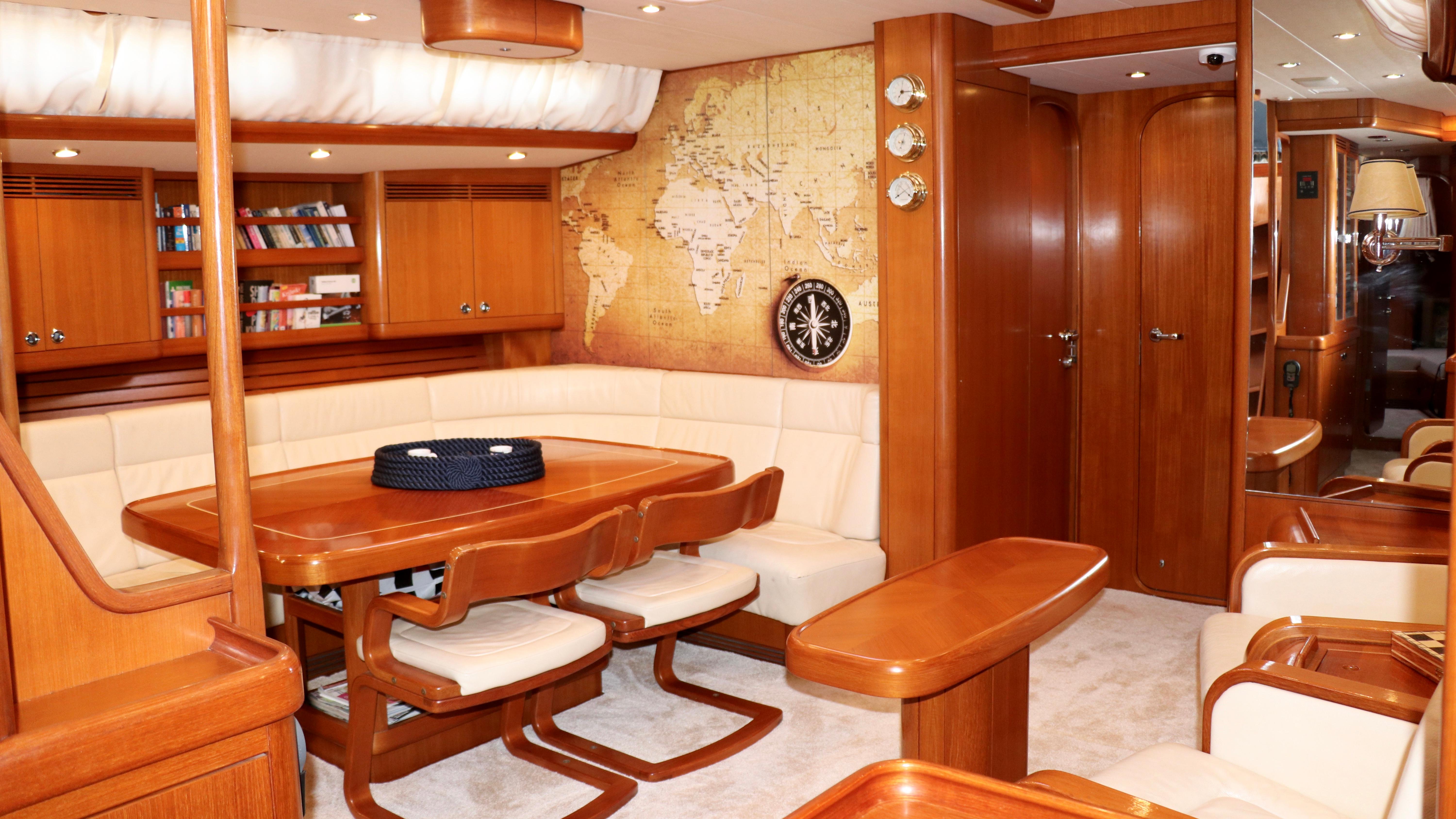

Saloon

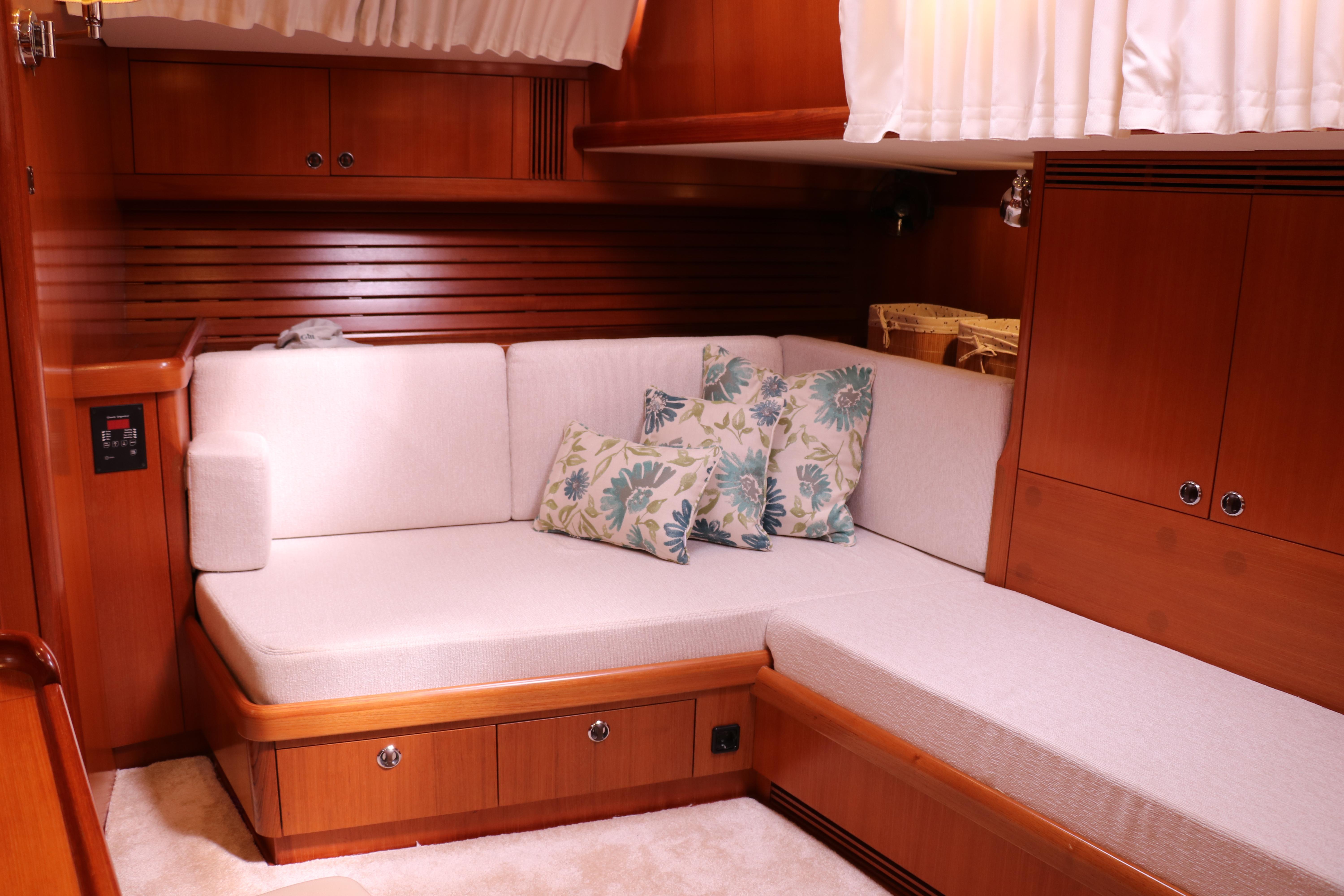

L-shaped settee with table port side,
Coffee table and settee to starboard
Icemaker

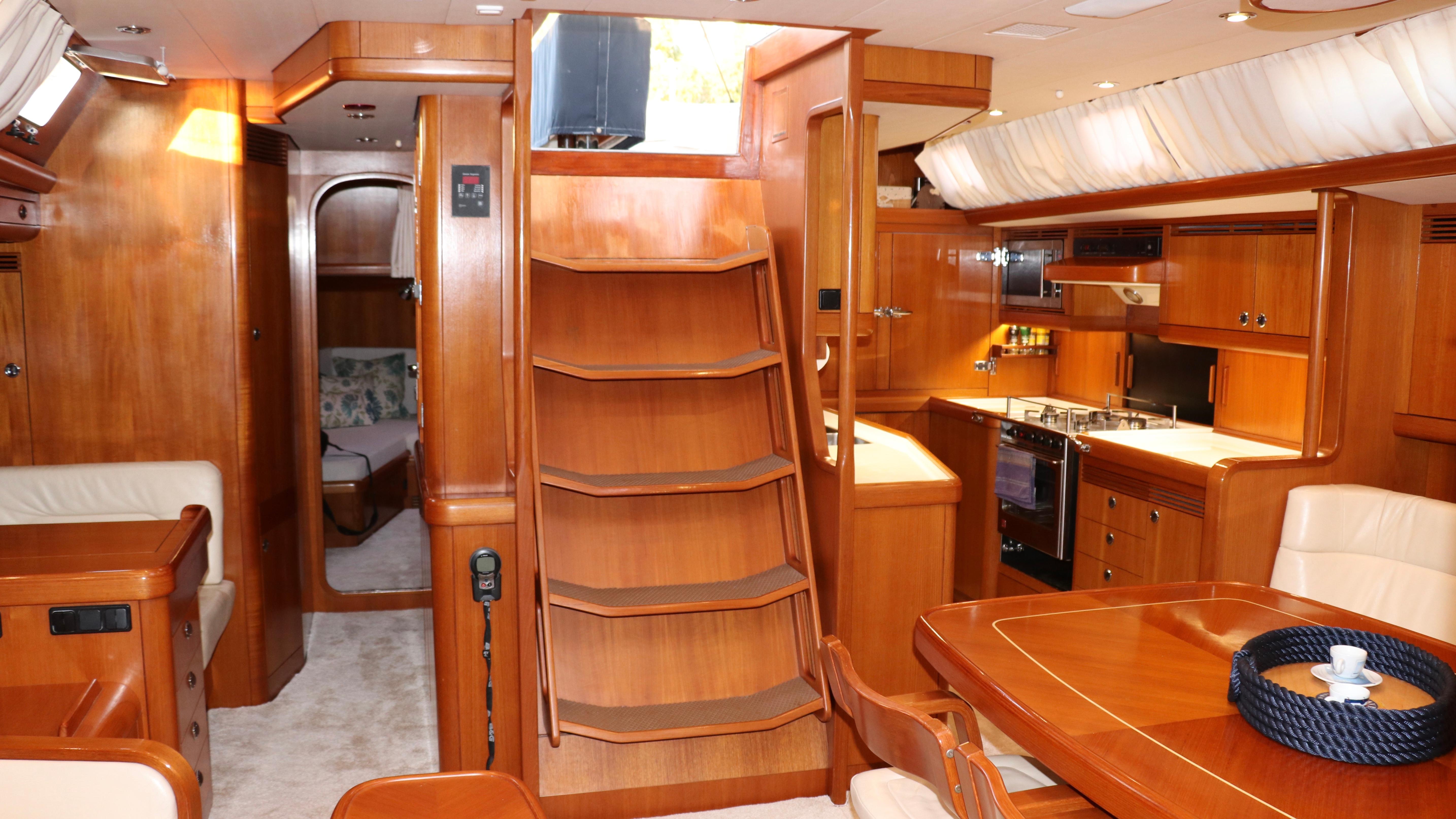

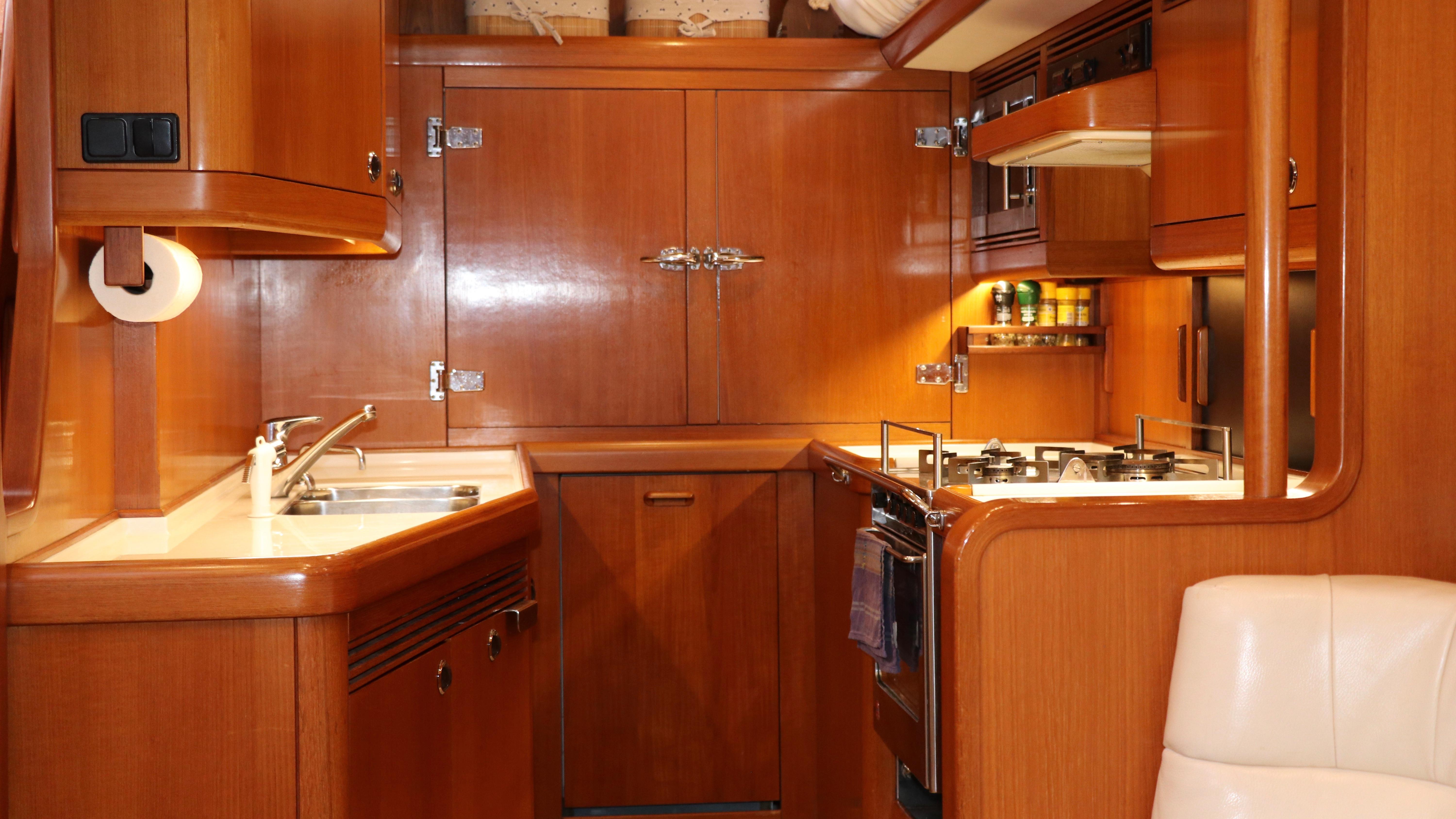

Galley
Galley is located on the port side aft of saloon
Work surfaces finished in Corian
Double stainless stell sinks
Storage lockers and drawers for galley items
Galley Equipment
Force 10 oven with four burner stove
240L refrigerator
240L Freezer
Microwave Whirlpool 2012
Nav Station
Forward facing chart table on starboard side aft of saloon
Instruments recessed in teak panels
Teak chart table with chart storage below
Engine Room
Engine space internally sound insulated, fire resistance meeting SOLAS B-15 requirements.
Drip tray integral with engine bed
ENGINE & SYSTEMS
Yanmar, 140 HP, from 2005 new Turbine 2013
Max Prop 3-blade propeller 635 mm
Fuel Filter Racor
Fuel capacity 900 L
Exhausts for engine and generator to be under the transom
Replacement turbine engine 2013
COOLING SYSTEMS
Thermostat controlled fresh water cooling with exchanger on engine. A separate heat exchange for the consumable fresh water is included in the same circuit making hot water avalaible whenever the engine running.Seawater intake with strainer, Discharge through exhauster system
Plumbing Systems
Hot and cold pressurized water system with back up foot pedal system
Total water capacity 840L in stainless steel tanks
Water maker Schenker 150 L
Drinking water purifier
Deck shower, hot and cold water port side at the bathing platform
Fresh water connection to deck wash
Deck wash sea water
230v hot water heater
Ventilation System
Air conditioning Air Clima, in all boat, including shore power inlet
Hella Turbo fans 8 pcs two in aft cabin, one at the nav. Station, one in galley,one in saloon, two in fwd guest cabin and one in forepeak
Drainage System
2x Manual bilge pumps, Whale Titan 100/min, one in cockpit, one near nav. station
Electric bilge pump in main bilge,. Automatic or manual operation
Galley Sinks drained through sea cock
Stainless steel holding tank with electric pump and deck suction line for toilets
Washbasin and shower trays drain to sump tanks, Sump tanks are emptied by electrical pumps, Back-up Wale Manual pumps
Toilet Vacuflush vacuum assisted toilets using fresh water for flushing
ELECTRICAL SYSTEM
DC System
24v DC electrical system
Service battery bank 280 AH
Engine start batteries 12v
Generator start batteries 12v
All batteries stored in ventilated GRP boxes
AC System
230V AC system powered b shore power inlet, generator or inverter
50A shore power system with polarity alarm
Westerbeke 12 KVA 50Hz generator
Chargers/Inverters
1 Mastervolt 24/25 batteries charged,
1 Mastervolt 24/75 batteries charged,
1 Shark MS2612 batteries charged,
Mastervolt 24/300 watt inverter
Service batteries charged by alternator on engine
Engine and generator start batteries charged by alternators on each engine
ELECTRONIC SYSTEMS
Navigation Instruments
B&G Hercules 2000 sailing instruments (speed, log, depth, temp, wind)
One FFD in aft cabin
One FFD in guest cabin
Two FFD in Saloon
One FFD in aft cockpit
Two 20/20 displays on mast below gooseneck
Magnified wind direction analogue in cockpit
masthead unit for wind speed/direction
Halcyon gyro compass
Suunto 5” steering compasses on each pedestel
Barograph special marine altitude
Quartz ships clock at Nav station
Furuno Radar on Nav Station and remote LCD rdar display on aft cockpit changed on 2009
New Radar Antenna on the mast 2013
GPS Plotter Northstar 951 XD on pedestal
Autopilot B&G Hydra
Raymarine E120 at nav Station and in cockpit Rymarine E80 new 2012
Communications Systems
SSB (with out antenna on the backstay)
Antenna Pacifc
VHF Icom M-127 in aft cockpit
Entertainment Systems
TV Sharp in saloon
Eclipse radio Cd system 2 speaker on saloon 2 speaker on AFT cabin, 2 speaker on FWR cabin, 2 speaker on cockpit
MAST & RIGGING
Carbon fiber mast (T-300) from Hall Spars (checked on 2012 / 2016)
With hydraulic Mast jack
Two 20/20 displays on mast below gooseneck
Park avenue Boom carbon fibre from Hall Spars, boom light
One spinnaker pole NOT ON BOARD
First reef as a conventional system
Second reef operate as a single system
Antal combination bolt/slider Luff Track
Navtec three function hydraulic system – backstay, vang and outhaul (Checked 2016)
Reckmann Hydraulic genoa furling RF-90 3 R40 driven by Reckmann Power Pack
EQUIPMENT
General Equipment
Anchor CQR 42LB
Spare anchor Danfoth
Two Sprayhood
Cockpit table
Cockpit cushions
Radar post with crane for lift outboard engine (radar antenna on mast)
Reverso Oil change pump OP703,24V connected to both main engine, gearbox and generator
Installing retractable bow thruster Max Power 2012
Safety Equipment
Fixed fire extinguisher system in engine room
Two portable fire extinguishers
Fire blanket in galley
Jackstays
SAILS
Sail
Year
Sailmaker
Material/Notes
MAINSAILS
2009
One
Good condition
UPWIND
Genoa
2009
One
Good Condition
Storm Jib
2009
One
Dacron never used
DOWNWIND
Spinnaker
2000
Never used
